Product Description:

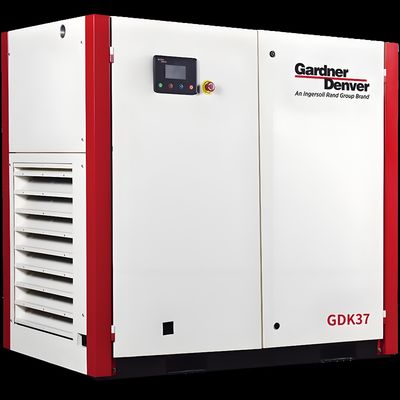

GDK07-75KW is an efficient and energy-saving micro oil screw air compressor designed specifically for the industrial sector, suitable for applications that require high compressed air quality but allow for trace oil content. This model adopts Dengfu's advanced screw host technology and intelligent control system, providing a stable, reliable, and energy-saving compressed air solution.
Core Features:
Excellent Host
- Adopting Ingersoll Rand host for comprehensive performance improvement
- Geometric and lubrication optimization of gears to achieve lower noise and higher reliability
- Dynamic simulation optimization of the intake and exhaust channels of the host to reduce pressure drop and improve efficiencyInnovative design
- Intake: The perfect combination of high-efficiency intake filter and ultra-low pressure loss intake valve reduces pressure loss and improves efficiency
- Drive: Adopting IEC standard high-efficiency motor, gear direct transmission mode, no vulnerable parts, more efficient
- Exhaust: The convenient top exhaust device can easily guide the air, making it easy to eliminate or recover waste heat
Intelligent control
- Touch screen color display
- Embedded IoT functionality
- Multi machine joint control
- Standard Modbus, remote/local monitoring
Multi detection security protection
- Host exhaust temperature detection
- Pressure detection before and after oil separation
- Maintenance Tips
Variable frequency energy-saving
- No peak starting current, completely eliminating energy consumption during unloading
- Variable frequency starting current is low and has no impact on the power grid, which is particularly important for users in unstable areas of the power grid. Variable frequency control maintains the pressure band within 0.1 bar without the need for large gas storage tanks
- The pressure will not exceed the required value, and there is no energy waste
- The low starting torque of the motor has minimal impact on mechanical components, resulting in a longer service life of mechanical components (such as bearings). The torque is transmitted according to actual needs without wasting excess energy
Safe motor (power frequency unit)
- IP55 closed motor (F-class insulation, B-class temperature rise), effectively dustproof and water-resistant
- Can operate continuously and stably in an environment of 55 ℃/131 ℉
Permanent magnet motor (frequency converter unit)
- Compared with asynchronous motors, rare earth permanent magnet motors have a simpler structure
- Single, reliable operation, high power density, wide speed range, it is the ideal power choice for high-efficiency and energy-saving air compressors
- efficient
- Small size and light weight
- Low noise
- High starting torque
- Start without impact
- Wide speed range
- Configure efficient IE5, IP66 oil cooled permanent magnet variable frequency motor, achieving H-level insulation and B-level temperature rise.
Connection method of host motor
- GDK07-22 power frequency unit adopts belt connection
- GDK30-75 power frequency unit adopts gear direct connection
- GDK07-75 permanent magnet frequency converter unit adopts coaxial connection
Application area
- Manufacturing industry: automobiles, mechanical processing, injection molding, spraying, etc
- Food&Medicine: Packaging, Filling, Pneumatic Conveying (with post-processing required)
- Electronics industry: SMT surface mount, precision instrument manufacturing
- Other: Mining, construction, textile, etc
Product functions and specifications
Packing and Shipping:
Product Packaging:
The Micro oil screw air compressor comes in a sturdy cardboard box with the product image and specifications printed on the outside. Inside, the product is securely packaged with foam inserts to prevent any damage during transportation.
Shipping:
Our standard shipping time is 3-5 business days. For expedited shipping, please contact our customer service team. We ship via trusted carriers such as UPS, FedEx, and USPS and provide a tracking number for your convenience.
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is Aipu.
Q: What is the model number of this product?
A: The model number of this product is Micro oil screw air compressor.
Q: Where is this product made?
A: This product is made in China.
Q: Does this product have any certifications?
A: Yes, this product is certified by ce.ul.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1pc.
Q: Is the price of this product negotiable?
A: Yes, the price of this product is negotiable.
Q: What is the packaging details for this product?
A: The packaging details for this product is container.
Q: How long is the delivery time for this product?
A: The delivery time for this product is 30 days.
Q: What are the payment terms for this product?
A: The payment terms for this product is tt.
Q: What is the supply ability of this product?
A: The supply ability of this product is 10000t/y
